Kalea Luna
Kalea Luna. Built for New Beginnings.

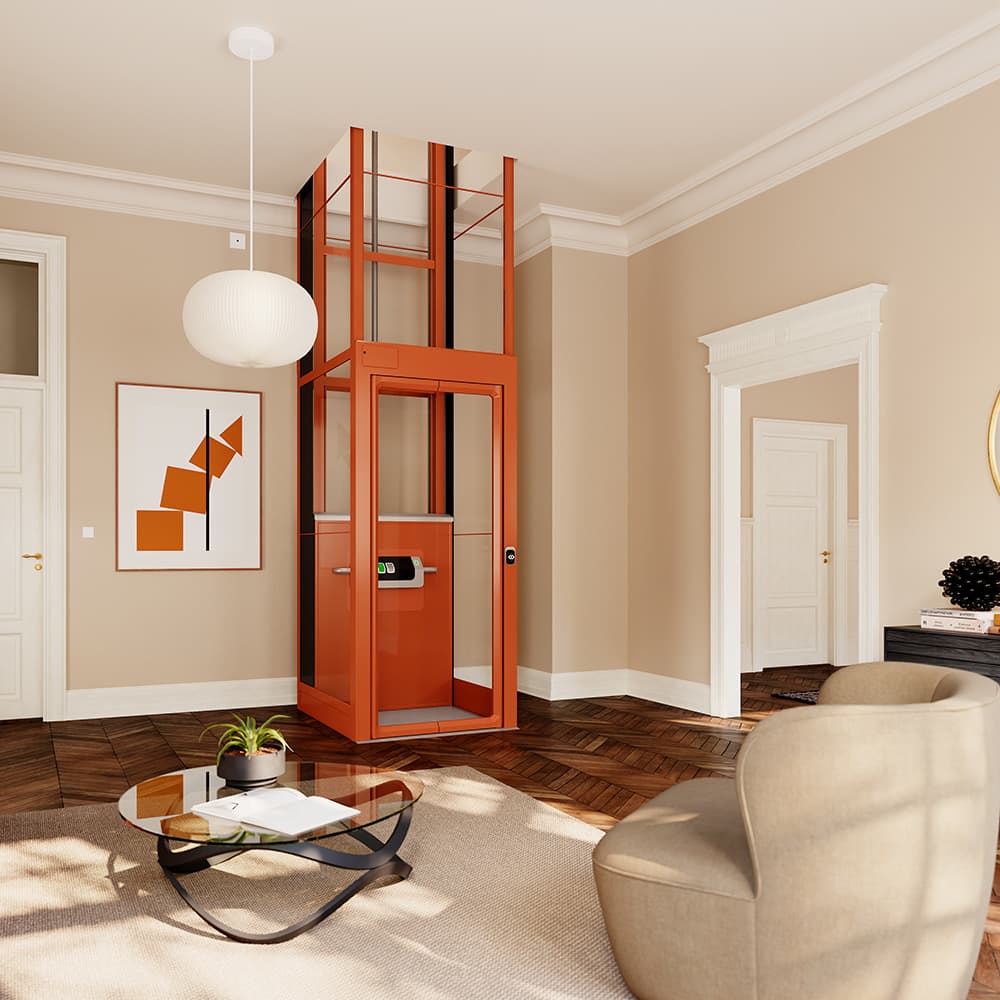

The Kalea Luna is the first lift model of our new generation of sustainable and space-saving lifts. Discover a lift that will accompany your through all the new beginnings in life. Elegant, ergonomic and easy to upgrade over time, the Kalea Luna will roll with the changes and make your dreams of freedom and comfort come true.
Discover Kalea Luna

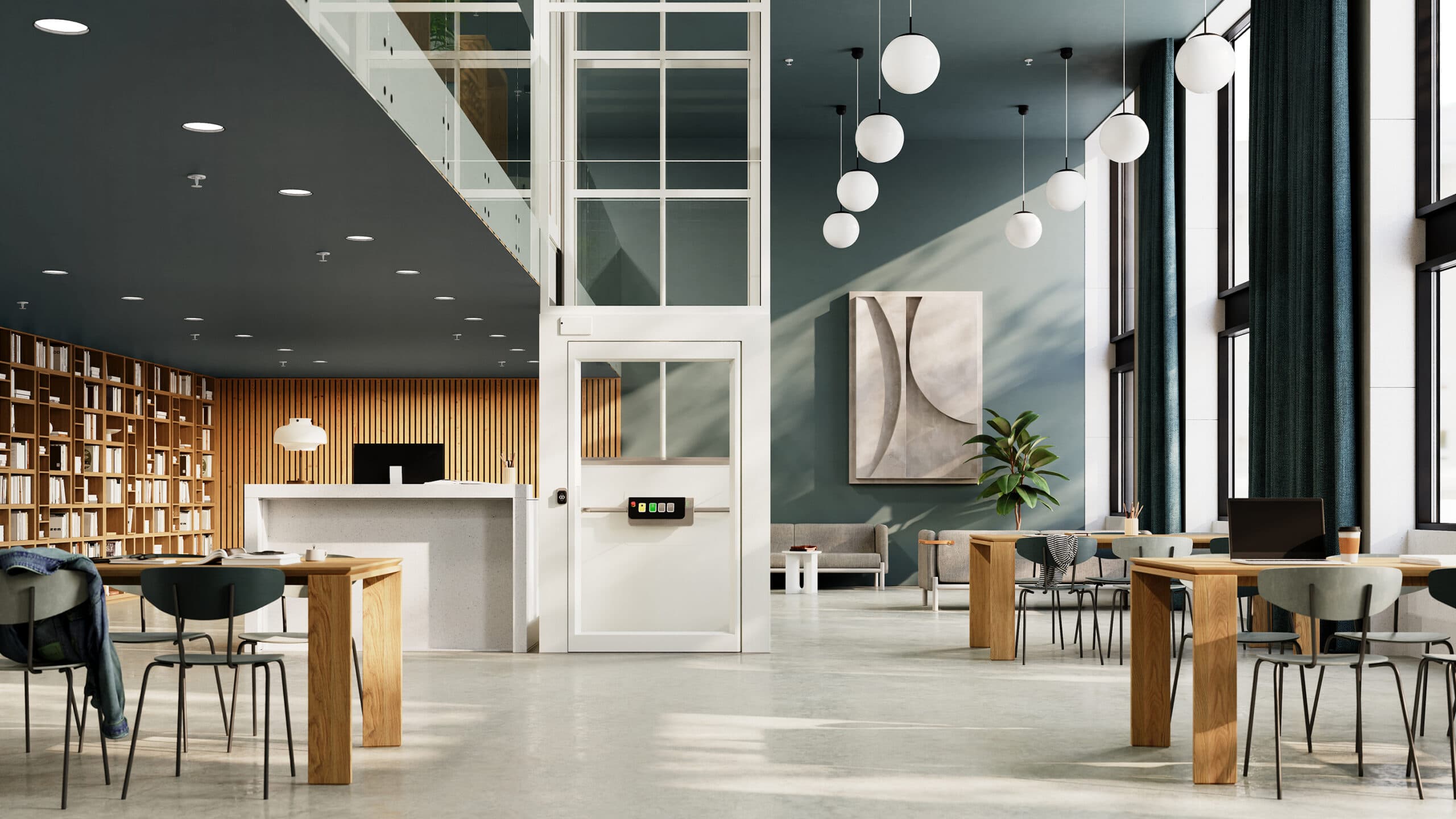

The Kalea Luna is built to handle new beginnings with sustainability and your needs in mind. Whether you need a lift to improve your comfort at home or to make a big building project accessible, Kalea Luna was designed to accompany your dreams.
Standard Collection
The Kalea Luna is available in 7 standard colours that have been carefully selected by our designers. Our colour collection ranges from subtle, neutral shades to rich and vibrant tones to blend in with a wide variety of interior designs. However, if you cannot find your perfect shade in our standard collection, that is absolutely no problem! You always have the option of composing your own bespoke design with the 250+ colours available in our global collection. Please contact your Kalea dealer for more information.
Lift Colours
Azure blue - A rich petrol blue that captures the depths of the North Sea
Unique Platform Design
The platform control panel has an elegant and ergonomic design with a futuristic edge. The fact that the floor buttons react to both top and frontal pressure makes hold-to-run operation* natural and easy. The integrated level indicator is another cool feature with an intuitive design.
*According to European Standards,platform controls need to be hold-to-run (constant pressure on the button), while landing controls have automatic drive. For countries outside of Europe, other standards may apply. Please contact us for more information.
Platform Lift with a High Standard
Available in 20 different lift sizes, the Kalea Luna not only offers you more flexibility than ever. The lift model also comes with many cool and versatile standard features to make your lift more beautiful to look at and comfortable to use.
Recessed LED Ceiling
The elegant recessed ceiling framed by energy-saving LED lights is part of our standard equipment.
Panoramic Shaft & Doors
The panoramic glazing of the lift shaft and doors offers you more transparency and light than ever.
Upgraded Drive System
Thanks to the upgraded drive system, the Kalea Luna is our most silent and energy-efficient lift to date.
Safety Edges with LED
The floor safety edges stop the lift at the slightest touch, and the LED lights add a cool and futuristic effect.
No Room for a Lift?
There is always room for a lift! Available in the widest range of platform sizes in the market, the smallest size of the Kalea Luna fits inside just 1 m2. And, thanks to the fact that your platform lift is always delivered with a ready-made lift shaft with glazing, there is no need to build a bulky masonry shaft.
If, on the other hand, you are looking for a large and powerful lift, the Kalea A4 Mille is a great option. Spacious enough to take goods pallets and stretchers, the Kalea A4 Mille has a lifting capacity of 1000 kg.
Specifications and model details
Technical information
- Installation:Indoor
- Rated load:300/400/500 kg
- Power supply:1x230 VAC/3x230 VAC/3x400 VAC, 50 Hz, 16 A, min. 3x2,5 mm²
- Speed:Max 0.15 m/s
- Min headroom:Top floor 2400 mm (full-height door)
- Lift pit:50 mm or 0 mm with access ramp
- Drive system:Screw and nut
- Max travel:20 m
- Max number of stops:6
- Lift controls:One touch (automatic drive) on landings, hold-to-run on platform
- Motor Power:1.5 kW
- Machine room:Integrated (MRL)
- Door configuration:Single entry/open-through access/adjacent access
- Directives and standards:MD 2006/42/EC, EN 81-41
Complete specifications and lift sizes
Check out the full Complete specifications and model details of Kalea Luna.
